Scatter plot with a categorical legend

A generic function that, by default, draws a scatter plot with points colored according to a factor f and (optionally) adds a categorical legend (fpoints.default() calls fplot() and plot.default(), or plot.xy() if add = TRUE).

Usage

fpoints(x, ...)

# Default S3 method
fpoints(
  x,
  y = NULL,
  f,
  col = hcld.colors(f),
  type = "p",
  cex = 1.5,
  pch = 16,
  legend = TRUE,
  legend.type = c("point", "box", "line"),
  legend.pch = pch,
  legend.cex = 1,
  legend.lty = 1,
  legend.lwd = 2,
  border = col,
  pt.cex = cex,
  seg.len = 1.5,
  horizontal = FALSE,
  legend.shrink = 1,
  legend.width = NULL,
  legend.mar = NULL,
  legend.lab = NULL,
  legend.x = "center",
  bigplot = NULL,
  smallplot = NULL,
  add = FALSE,
  reset = TRUE,
  xlab = NULL,
  ylab = NULL,
  asp = NA,
  ...
)

Arguments

x: object used to select a method. In the default method, it provides the x coordinates for the plot (and optionally the y coordinates; any reasonable way of defining the coordinates is acceptable, see the function xy.coords() for details).
...: additional graphical parameters (to be passed to the main plot function or to fpoints.default(); e.g. xlim, ylim, ...). NOTE: graphical arguments passed here will only have impact on the main plot. To change the graphical defaults for the legend use the par() function beforehand.
y: y coordinates. Alternatively, a single argument x can be provided.
f: (factor, or vector coercible to factor), with length equal to the number of points, giving the group of each point.
col: colors associated with each level of f Defaults to hcld.colors().
type: character indicating the type of plotting; actually any of the types as in plot.default().
cex: numerical vector giving the amount by which plotting characters and symbols should be scaled relative to the default. This works as a multiple of par("cex").
pch: vector of plotting characters or symbols: see points().
legend: logical; if TRUE (default), the plotting region is splitted into two parts, drawing the scatter plot in one and the categorical legend in the other. If FALSE only the (coloured) scatter plot is drawn and the legend-related arguments are ignored (fplot() is not called).
legend.type: type of symbols shown in the legend: "box" for filled color boxes (as in a classic factor-level legend), "point" for points, or "line" for line segments (see fplot()).
legend.pch, legend.cex: plotting character and size used in the legend when legend.type = "point".
legend.lty, legend.lwd: line type and width used in the legend when legend.type = "line".
border, pt.cex, seg.len: additional legend() parameters, also used to estimate the required legend width/height. The default values are: border = col, pt.cex = cex * 1.5 and seg.len = 1.5.
horizontal: logical; if FALSE (default) legend will appear on the right side. If TRUE the legend will be along the bottom.
legend.shrink: amount to shrink the size of legend relative to the full height or width of the plot.
legend.width: width in characters of the legend strip. Default is 1.2, a little bigger that the width of a character.
legend.mar: width in characters of legend margin that has the axis. Default is 5.1 for a vertical legend and 3.1 for a horizontal legend.
legend.lab: label for the axis of the color legend, defaults to a description of f.
legend.x: legend location relative to the legend panel (argument x of legend()). Possible values are: "center" (default), "bottomright", "bottom", "bottomleft", "left", "topleft", "top", "topright" or "right".
bigplot: plot coordinates for main plot. If not passed, and legend is TRUE, these will be determined within the function.
smallplot: plot coordinates for legend strip. If not passed, and legend is TRUE, these will be determined within the function.
add: logical; if TRUE the scatter plot is just added to the existing plot (including the legend if legend = TRUE, although the graphical parameters are not modified).
reset: logical; if FALSE the plotting region (par("plt")) will not be reset to make it possible to add more features to the plot (e.g. using functions such as points or lines). If TRUE (default) the plot parameters will be reset to the values before entering the function.
xlab: label for the x axis, defaults to a description of x.
ylab: label for the y axis, defaults to a description of y.
asp: the y/x aspect ratio, see plot.window().

Value

fplot() invisibly returns a list with components: bigplot, smallplot, old.par, col and labels (par(old.par) will reset plot parameters to the values before entering the function).

Side Effects

If reset = FALSE, the plotting region (par("plt")) may be changed after exiting, to make it possible to add more features to the plot. They can be restored using the old.par returned values or by calling function par.reset().

Examples

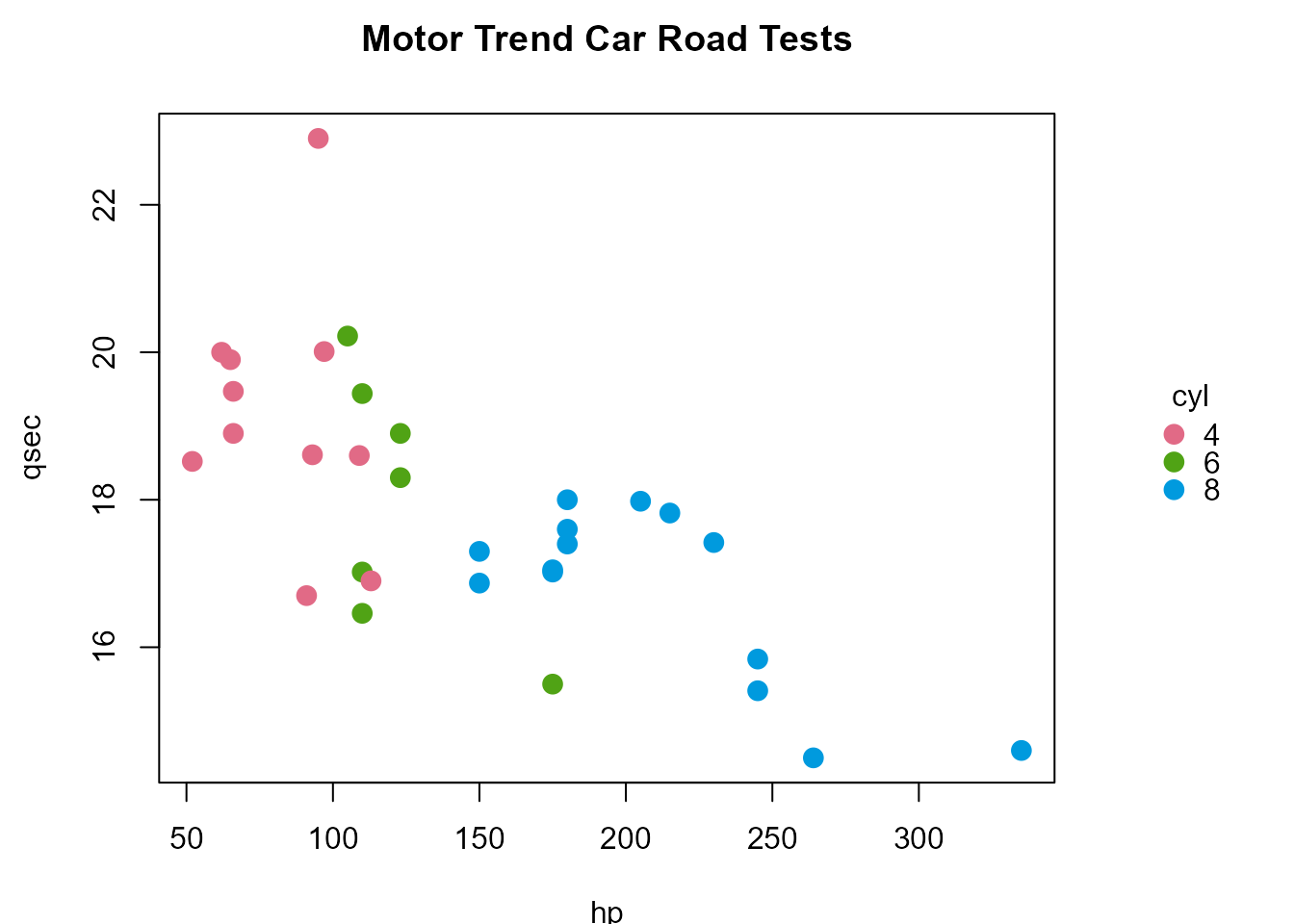

with(mtcars,
    fpoints(hp, qsec, f = cyl, main = "Motor Trend Car Road Tests")
)
